Builder Extreme 1500 PRO – Heated Chamber
€59.995,00 Ex. VAT
MADE TO ORDER

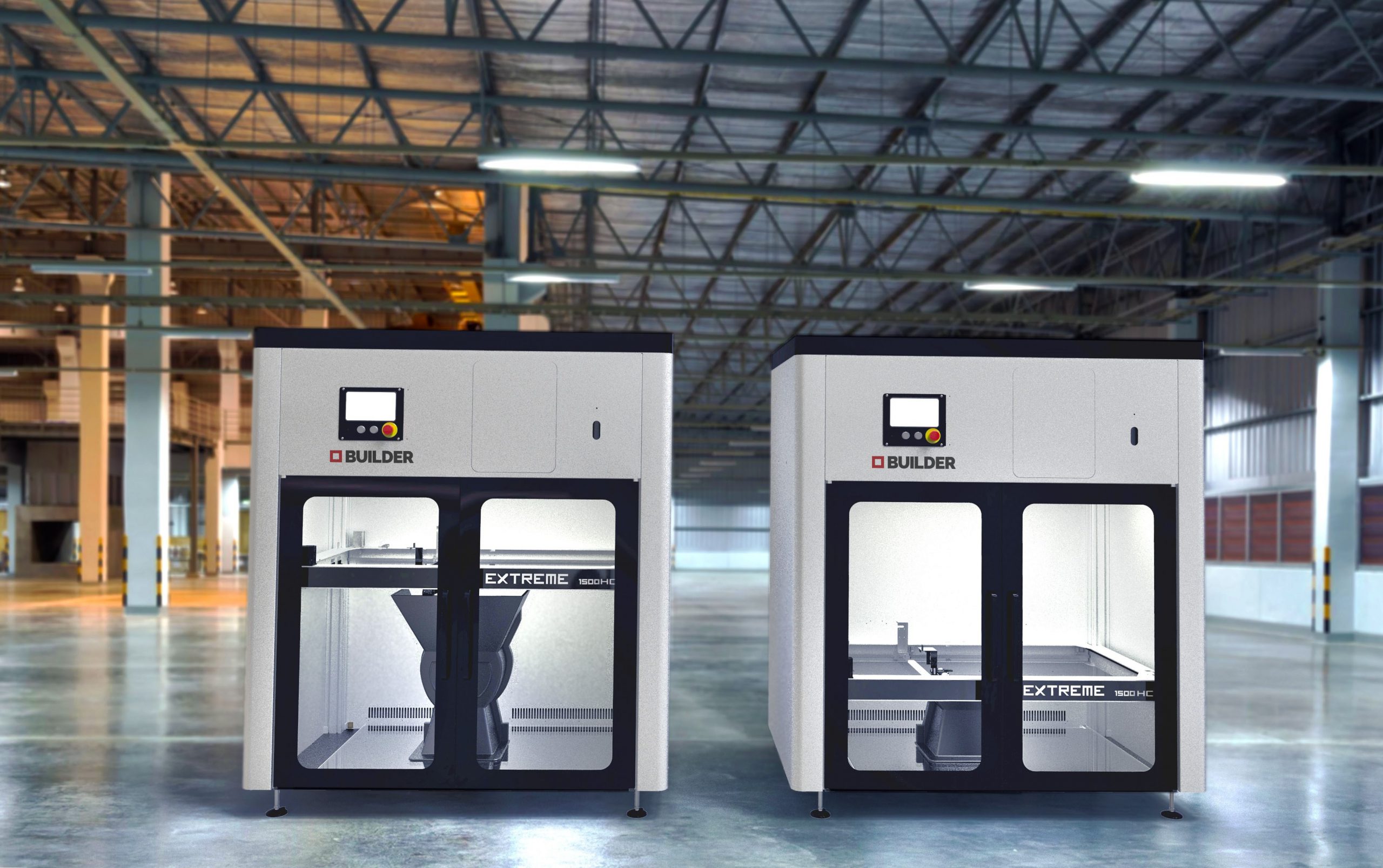

With a build volume of 1100x500x820 mm, the Extreme 1500 PRO Heated Chamber is a fully closed industrial 3D printer made to print large and full scale parts such as molds, tooling and end-use parts. The heated chamber makes it the ideal large format machine for 3D printing industrial applications as the printed materials are heat resistance and extremely strong. The newly developed print head is water cooled and easy to use. The different nozzle diameters allow the user to optimize the print quality and speed for their specific project.
Product Specifications
Technology
FFF (Fused Filament Fabrication)
Print head
Mono print head (3 nozzle diameters included)
Build size
1100 × 500 × 820 mm (XYZ)
Layer height resolution
0.4 mm nozzle: 0.2 – 0.3 mm
0.6 mm nozzle: 0.2 – 0.5 mm
0.8 mm nozzle: 0.3 – 0.7 mm
Print speed
Up to 200 mm/s (standard speed 80 mm/s)
Depending on geometry of part and nozzle size
Travel speed
Up to 300 mm/s
Build plate
Heated aluminium plate up to 100°C
Bed levelling
Manual bed levelling at installation only
Feeder type
Direct drive
Nozzle diameter
0.4 standard, 0.6 and 0.8 mm are included
Heated Chamber
Up to 70°C
Power rating
3 kW (at peak)
Connectivity
USB, Wi-Fi, Ethernet
Display
7-inch full colour touchscreen
Filament detection
Yes
UPS system
Possibility to resume print after power failure
Safety locking system
Doors open only after print is paused
Certification
CE
Machine dimensions
1950 × 950 × 1850 mm (L×W×H)
Weight
290 kg
Shipping dimensions
2100 × 1050 × 2100 mm (L×W×H)
PRO1 (advanced PLA)
1.75 mm
PET-G
1.75 mm
Nylon
1.75 mm
PATH CF15 (pending)
1.75 mm
ABS
1.75 mm
ASA
1.75 mm
Nylon CF15
1.75 mm
Supplied software
Simplify3D
Supported
Mac, Windows
Heated Chamber
For superb print quality, less warping when printing bigger objects and for better adhesion the Extreme 1500 PRO HC has a temperature controlled heated build chamber. The heated chamber can heat up to 70°C. The machine is fully insulated to make sure no heat is lost during the printing process. Even the filament drawer is passively heated making sure filament remains in optimal condition. You can even place a second spool in the drawer so it can be dried pre-printing.
Heated bed up to 100°C
For strong adhesion and less warping the Extreme 1500 PRO HC has a heated bed that can reach up to 100°C. The aluminum build plate make sure the heat is equally divided over the print bed. Besides the aluminum plate, you can also use a flexible build plate which you can put over the standard aluminum plate to make part removal easier.
Water cooled print head
The print head of the Extreme 1500 PRO HC can reach a maximum temperature of 300°C. To keep the print head in good condition, including the extruder motors, the print head is water cooled.
Different nozzle diameters
The water cooled print head comes with 3 different nozzle diameters, 0.4, 0.6 and 0.8 mm. With the different nozzle diameters, which can easily be swapped, engineers and designers can optimize the print results and printing time for their specific object.
BOFA air filter
Health and safety are key in a work environment, that is why the Extreme 1500 PRO HC is fully prepared for a BOFA air filter system. It can easily be connected to the side of the machine. The air filter will automatically switch on when the print is done. Before opening the doors, the air inside the machine is being filtered. The filter is mandatory with the purchase of the Extreme 1500 PRO HC.
