Builder Extreme 1000 PRO

December 12, 2016 by

Builder Extreme 1000 PRO

€19.995,00 Ex. VAT

Request a quote
Lease the Builder Extreme

The Builder Extreme 1000 PRO is an optimal solution between small desktop FDM printers and large, industrial machines.

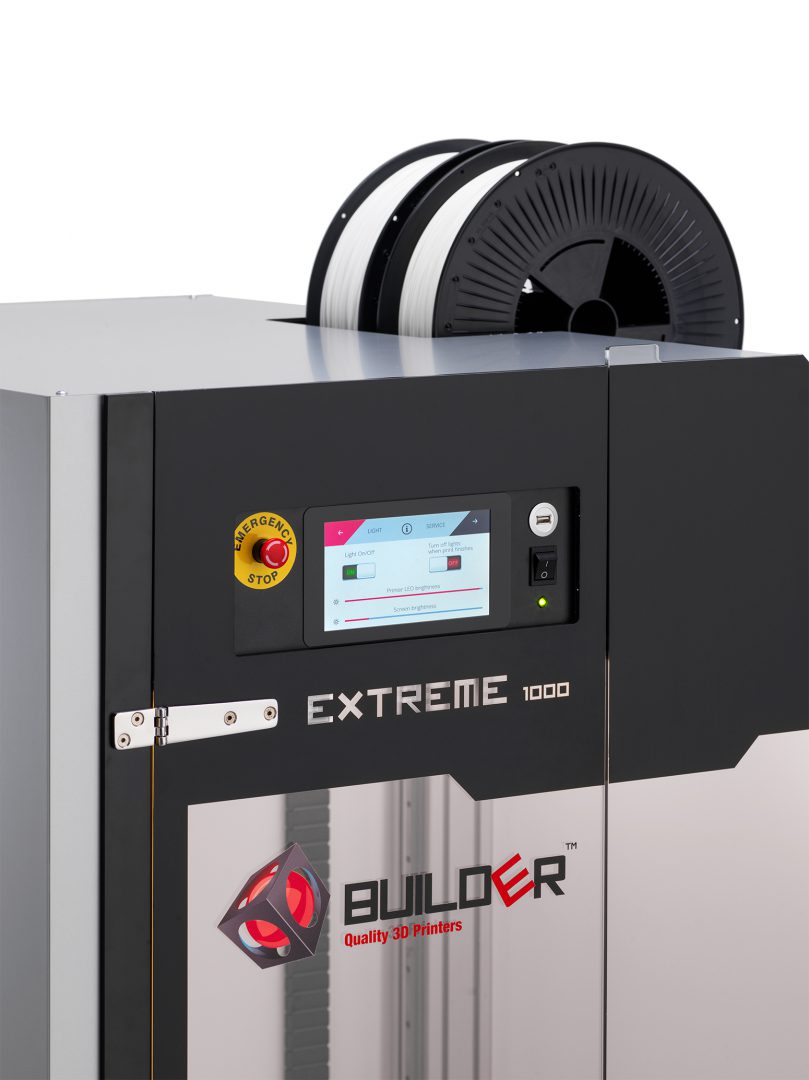

With a print volume of 700x700x820 mm (XYZ), it is the perfect large-scale 3D printer for printing full-size prototypes, molds, tooling or props. Features such as a 7-inch touch display, filament detection, a UPS system, which resumes the print job after power outage, make it a fully equipped 3D printer.

The included accessory kit contains the 0.4, 0.8 and 1.2 mm nozzles and the tools necessary for maintenance. The Builder Extreme comes with slicing software Simplify3D and optimized FFF profiles for a 0.4, 0.8 and 1.2 mm nozzle.



  • Extreme Specs
  • General Specs
  • 3D Print Materials
  • Software

Extreme Specs

Build size
700x700x820 mm (LxWxH)

Extruder
Dual-Feed system developed in-house

Print speed
300 mm/s

Travel speed
500 mm/s

Layer height resolution
0.1 – 0.9 mm
(depending on the nozzle)

Print technology
FDM/FFF (Fused Deposition Modeling)

Nozzle diameter
0.4 mm/ 0.8 mm/ 1.2 mm

Print bed
Aluminium build plate (up to 60 °C)

Bed leveling
automatic build plate leveling

UPS system
Uninterruptible power supply resumes
the print after power outage

General Specs

3D Printer dimensions
1010 x 1010 x 1550 mm (LxWxH)

Shipping dimensions
1080 x 1200 x 1900 mm (LxWxH)

Certificates
CE certified

AC port
100 – 240 V / ~10A / 50 – 60 Hz / 2200 Watt

Frame
Aluminium

Weight
225 kg

Connections
Wi-Fi, USB

Bed leveling
Semi-automatic bed leveling

3D Print Materials

PLA
1.75mm

PVA
1.75mm

Flexibel Filament
1.75mm

Woodfill
1.75mm

Bronzefill
1.75mm

PET
1.75mm

Software

Open Source
Simplify 3D

File Types
STL

null
Unique Dual-Feed system
Integrated Wifi
Extremely big build size of 700 x 700 x 820mm (LxWxH)
Integrated heated bed
On-board camera
Filament detection
</p> <div class='ult-tooltipster-content ult-responsive' data-ultimate-target='#hotspot-tooltip-5923 .ult-tooltipster-content' data-responsive-json-new='{"font-size":"","line-height":""}'>Ups resume after power outage</div> <p>

The Unique Features of the Builder Extreme

Use your mouse to go over the icons to see the unique features of the Builder Extreme.
